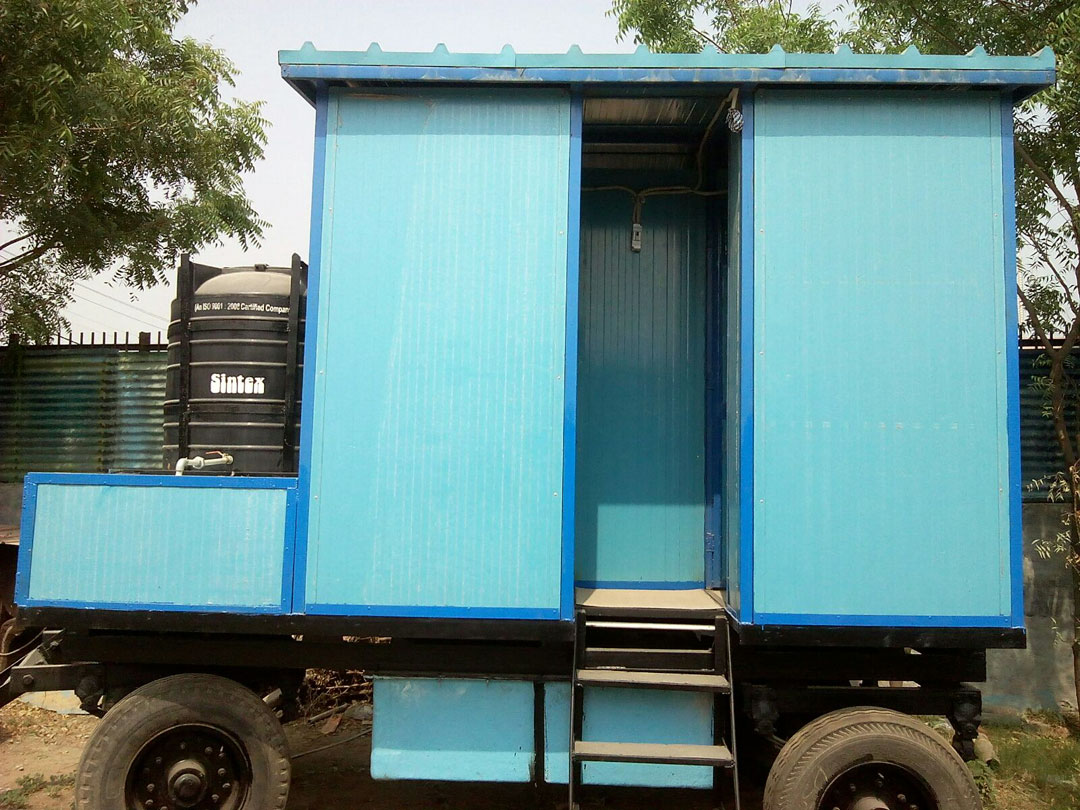

Go Green 4 Seater Mobile Toilets

TECHNICAL SPECIFICATION FOR MOBILE TOILET VAN OF 04 SEATER

Base Frame Shall be fabricated from M.S. Channel of size 150x 75mm,75x 40mm and 100x 50mm.
Cabin Structure Shall be fabricated by using M.S. Angle of size 40 x 40 x 5mm, M.S. Tee of size 40x40x5mm etc.
Cabin Panel Shall be covered with F.R.P. Coated Asbestos Sheet Approx.8mm for longer life.
Door Shutters Door shutters for each cabin shall be fabricated of size 72”x27” approx. using M.S. Angle of size 25x25x3mm and M.S. Flat of size 25x3mm covered with F.R.P. Coated Asbestos sheet with Tower Bolt, Door Handle, Locking Bolt and But Hinges etc.
Roof Structure Shall be fabricated by using M.S. Angle of size 40 x 40 x 5mm and 32x32x3mm having round shape and projection and covered with transparent fiber glass sheet 2mm thick.
Flooring Floor panel integrated with squatting pan / plain floor, footrest and skirting will be FRP molded 5mm thick.
Biodigester & Reed bed



FRP moulded Biodigester tank approx. 5mm thick 400ltr. Capacity for long life with Pall ring biomedia, Anaerobic bacterial culture and EKOGEA Bioadditives.  FRP Reed bed of 500 ltrs. with baffle walls, bio-cord assembly & reed plants connected to the urinals.
Water Tank Double layer plastic container Water Storage Tank (according to the brand available) of Capacity 500ltrswill be provided.
Toeing Arrangement Shall be fabricated by using M.S Channel of size 100mmx50mm. Thrust bearing , bearing holder and toeing hook with spring etc. and other necessary fittings.
Suspension Consisting of two nos. M.S. square axles of size 75mm X 75mm with taper roller bearings (32213) 8nos. Hub 04nos. , road spring heavy duty and 04 tyres with tubes and flaps of  7.50 x16  Retreated with other necessary fittings.
Washbasin 2nos. FRP  Washbasin, ( two looking mirrors, two towel roadon demand) provided.
Disposal For Disposal of Sludge 110mm gate valve with hose nipple and 100mm flexible pipe of 15′ length provided.
Electric Point One point in each toilet cabin with controlling of M.C.B. on each side ladies / Gents.
Water Connections Every toilet cabin with water connection of 15mm dia P.V.C. Pipe and other fitting.
Connection Connection of each toilet with 100mm dia FRP / PVC Pipe with P-Trap and other fitting and one connection of waste pipe.

NOTE :

Minor Dimensions/ Specification may be changed subject to availability of material.
