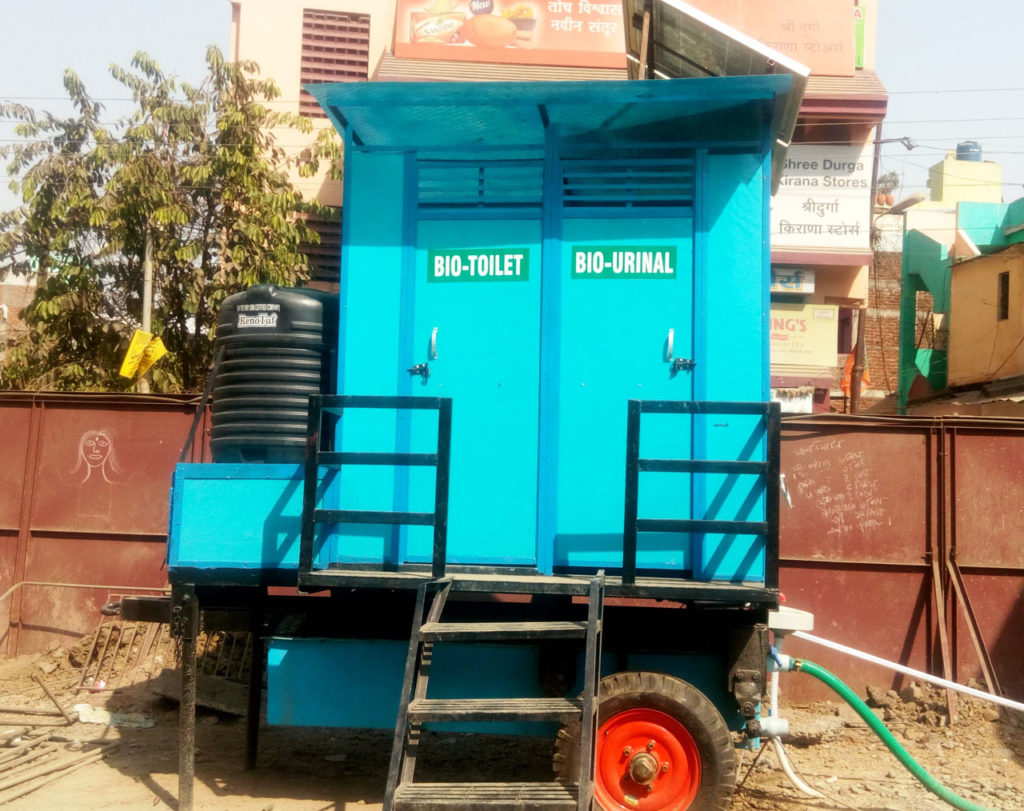

Go Green 2 Seater Mobile Toilets
Go Green 2 Seater Mobile Toilets

TECHNICAL SPECIFICATION FOR 2 SEATER MOBILE BIOTOILET VAN WITH REED BED

Base Frame Shall be fabricated from M.S. Channel of size 75 x 40mm.
Cabin Structure Shall be fabricated by using M.S. Angle of size 32x32x3mm & 25x25x3mm etc.
Cabin Panel Shall be covered with F.R.P. Coated Asbestos Sheet Approx 8mm for longer life.
Door Shutters Door shutters for each cabin shall be fabricated of size 72”x27” approx. using M.S. Angle of size 25x25x3mm and M.S. Flat of size 25x3mm covered with F.R.P. Coated Asbestos sheet with Tower Bolt, Door Handle, Locking Bolt and But Hinges etc.
Roof Structure Shall be fabricated by using M.S. Angle of size 25x25x3mm having round shape and projection and covered with transparent fiber glass sheet 2mm thick.
Flooring Floor panel integrated with squatting pan, footrest and skirting will be FRP molded 5mm thick.
Biodigester Tank



FRP moulded Bio Digester tank  with Pall ring Biomedia approx. 500 ltr. Capacity with 5mm thick for long life. Supplied with Anaerobic bacterial culture and EKOGEA Bioadditives.
Reed Bed FRP moulded Reed bed of 500 ltrs. capacity with baffle wall, Bio-cord assembly & Phyto plants.
Water Tank Triple layer plastic container Water Storage Tank (according to the brand available) of Capacity 200 ltrs  will be provided
Toeing Arrangement Shall be fabricated by using M.S Channel of size 75x40mm and other necessary fittings with supporting MS pipe.
Suspension Consisting of one no. M.S. square axles of size 50mm X 50mm with suitable bearings 4no. Hub 04nos. , road spring of size 20” heavy duty and 02 tyres with tubes and flaps of  6.00 x 16  Retreated with other necessary fittings.
Washbasin 1no. FRP  Washbasin provided.
Disposal For Disposal of waste water 50mm valve with hose nipple and 50mm flexible pipe of 10′ length provided.
Electric Point One point in each toilet cabin with controlling of 5 amp switch ( solar panel available on demand).
Water Connections Every toilet cabin with water connection of 15mm dia P.V.C. Pipe and other fitting.
Connection Connection of each toilet with 110mm dia FRP / PVC Pipe with P-Trap and other fitting and one connection of waste pipe.
Walkway & railing Shall be fabricated by using M.S Channel of size 75x40mm, M S flat 25x25xmm & Box pipe  and other necessary fittings with supporting arrangements

NOTE :

Minor Dimensions/ Specification may be changed subject to availability of material.
